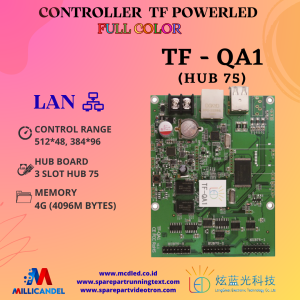

TF QA1 HUB 75
1. State : Batch supply
2.Function introduction : Any partition, multi-zone any overlay, video decoding, background animations, support cross screen
3.Communication port : Gigabit Ethernet + U disk combo
4. Network function : Card Default IP: 192.168.1.252, support smart card IP auto-linking
5. USB function : USB program update, USB brightness adjustment, USB panel setup. U disk directly play program
6. Pixel : Full color: 512×48 384×96(Only high 96 points 1/16 scanning modules)
7. Ports : 3 HUB75 port
8. Scanning mode : support 1/16,1/8,1/4,1/2 and Static full-color scanning module, Support Smart Set any plot points
9. Storage : 4G (4096M bytes)
10. Program number : Supports up to 200 programs, each program supports 16 regional play simultaneously. Each supports up to 200 graphic information
11. Display : Rain, fountains, scrolls, etc. 45 animation effects.
12. Border : Support a variety of Colorful border effect, support picture custom border
13. Information Type : Video, hypertext, pictures, animation, countdown, is timing, temperature, humidity, clock
14. Play Mode : Program host turns playing, long playback order, support segment by date, time, week broadcast regularly
15. Time Display : Dial clock, word clock, time with seconds, adjustable font size, you can set the time zone. Support multiple time zones control display
16. Communication method : Network communication port, support network automatically finds 10M / 100M / 1000M adaptive, support U disk update program
17. Brightness : 16 level Brightness, support for manual brighter, supports six time timing adjustment brightness automatically according to ambient brightness light-sensitive
18. Screen switch : Manual switch screen, supports four time periods timer switch screen
19. Test button : On-board test button, you can switch to test mode
20. Extension function : Temperature sensor,Temperature&humidity sensor.
21. Electrical parameters : +5V DC(4.5V～5.5V),Power consumption<3W
22. Working temperature : -30℃～70℃
23. Size : 119mm*92mm
