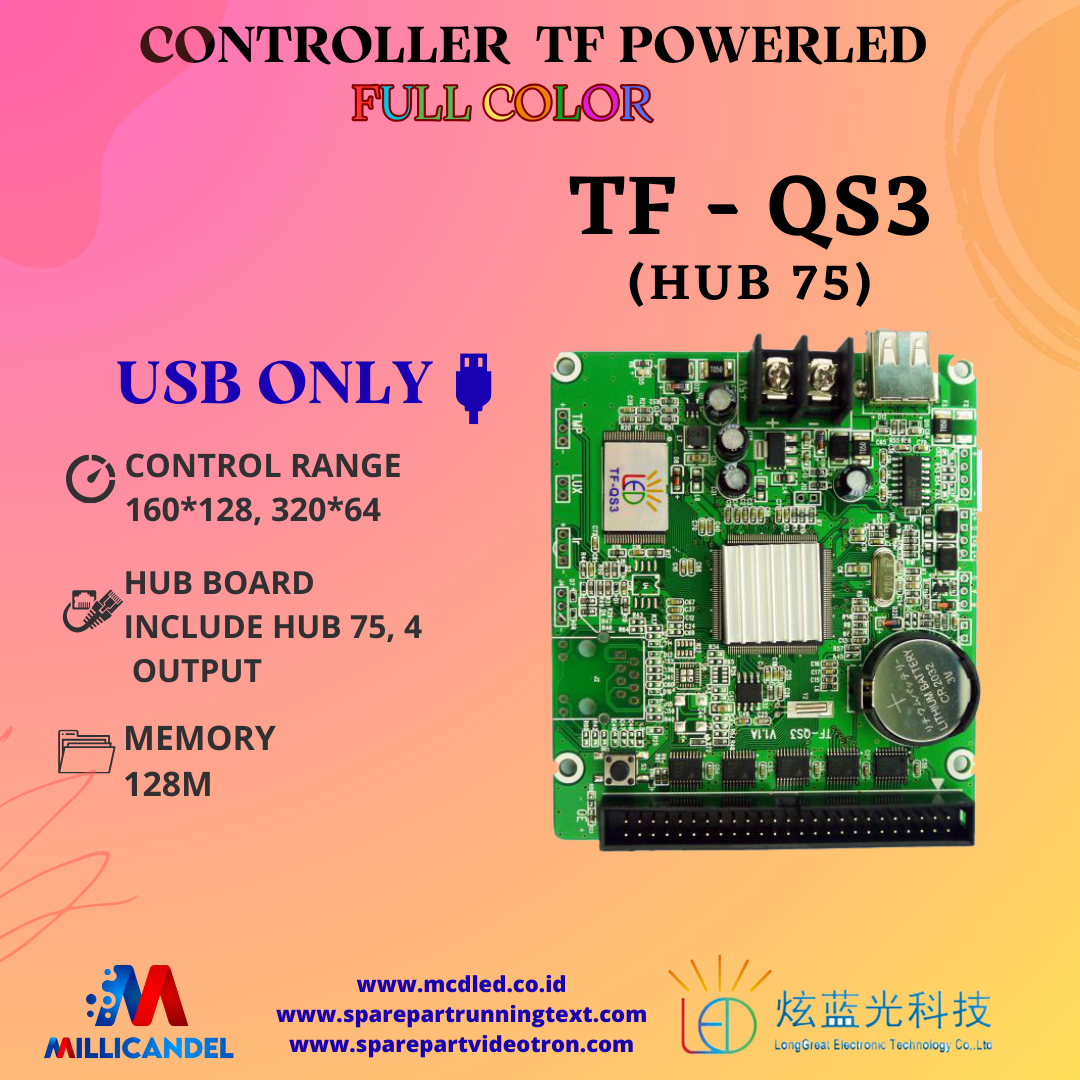

TF QS3 HUB 75
1. States : Batch supply
2. Function : Arbitrary partition,Multi partition arbitrary superposition,Program background animation,,Streamer word,Text strokes,U-disk Smart scan pixels,support coss screen.
3. Interface : U-disk
4. U-disk function : support U-disk uopdate program,U-disk adjust brightness,U-disk set the screen parameter.
5. Control range : full color 160*128, 320*64
6. HUB board : 1 50pin
7. Scan type : Support 1/16,1/8,1/4,1/2,static,support smart settings,U-disk smart scan.
8. Memory : 128M
9. Program : Maximum support 200 programs,support 16 partitions play,Partitions can overlap16,eahc widow support 200 texts.
10. Effect : 45 kinds of action
11. Colorful border : support many Colorful borders,support picture user-defined borders.
12. content type : Video,Text,flash,picture,animation,timing,count down,clock,Temperature,humidity.
13. Play type : program support playing by turns,by timing,by date,by week,by time quantum.
14. Time display : Clock,time,time with seconds,support adjusting font size,can set time zone,support many different time zones play at the same time.
15. Communication : U-disk update
16. Brightness adjust : 16 levels brightness.support Manual adjustment of brightness,support 6 period timing adjust brigtness,if you add a sensor, Auto adjust brightness.
17. Screen switch : manual screen switch,support 2 period timing screen swich.
18. Test Key : have test key on board,can Switch test mode.
19. Expand function : Temperature sensor,temperature and humidity sensor,brightness sensor.
20. Electrical parameters : +5V DC(4.5V~5.5V),working ≤3W
21. working temperature : -30oC~70oC
22. Physical size : 96mm×84mm Locating hole::78mm x 78mm
