Low cost, high reliability
Built-in EMI Filter
Low output ripple&noise
Protections: Over load/ Short circuit

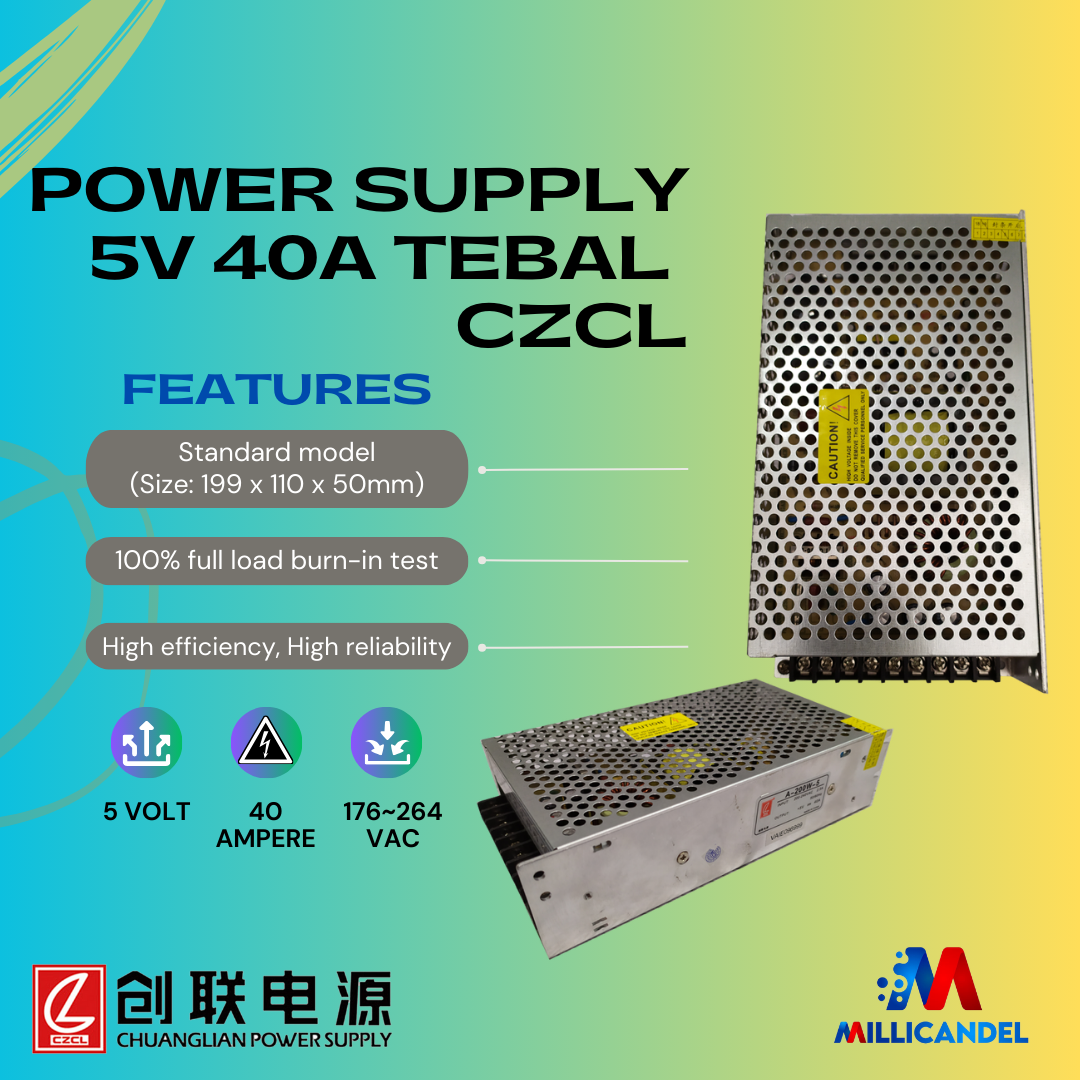

Case: 808 Size: 199*110*50mm
AC Input voltage range”””””””””””..176-264VAC
Input frequency””””””””””””””””47-63Hz
AC Inrush current”””””””””””””””Cold start, 40A/ 230VAC
DC adjustment range””””””””””””. 10% rated output voltage
Line regulation(full load)””””””””..’0.5%
Output over load protection”””””””””..110%-150% shut off, AC recycle to re-start
Rise, hold up time””””””””””””””..50mS, 20mS at full load (typical)
Withstand voltage””””””””””””””..I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min
Working temperature””””””””””””..-10′” to + 40′”@100%, +60′”@ 60% load
Storage temperature”””””””””””””-20′”~ +85′”,20%~ 95%RH (non-condensing)
Safety standards”””””””””””””””.Design refer to GB4943,UL60950-1,EN60950-1
EMC standards””””””””””””””””Design refer to GB9254,EN55022 class A
Cooling method””””””””””””””””Free air cooling convection
