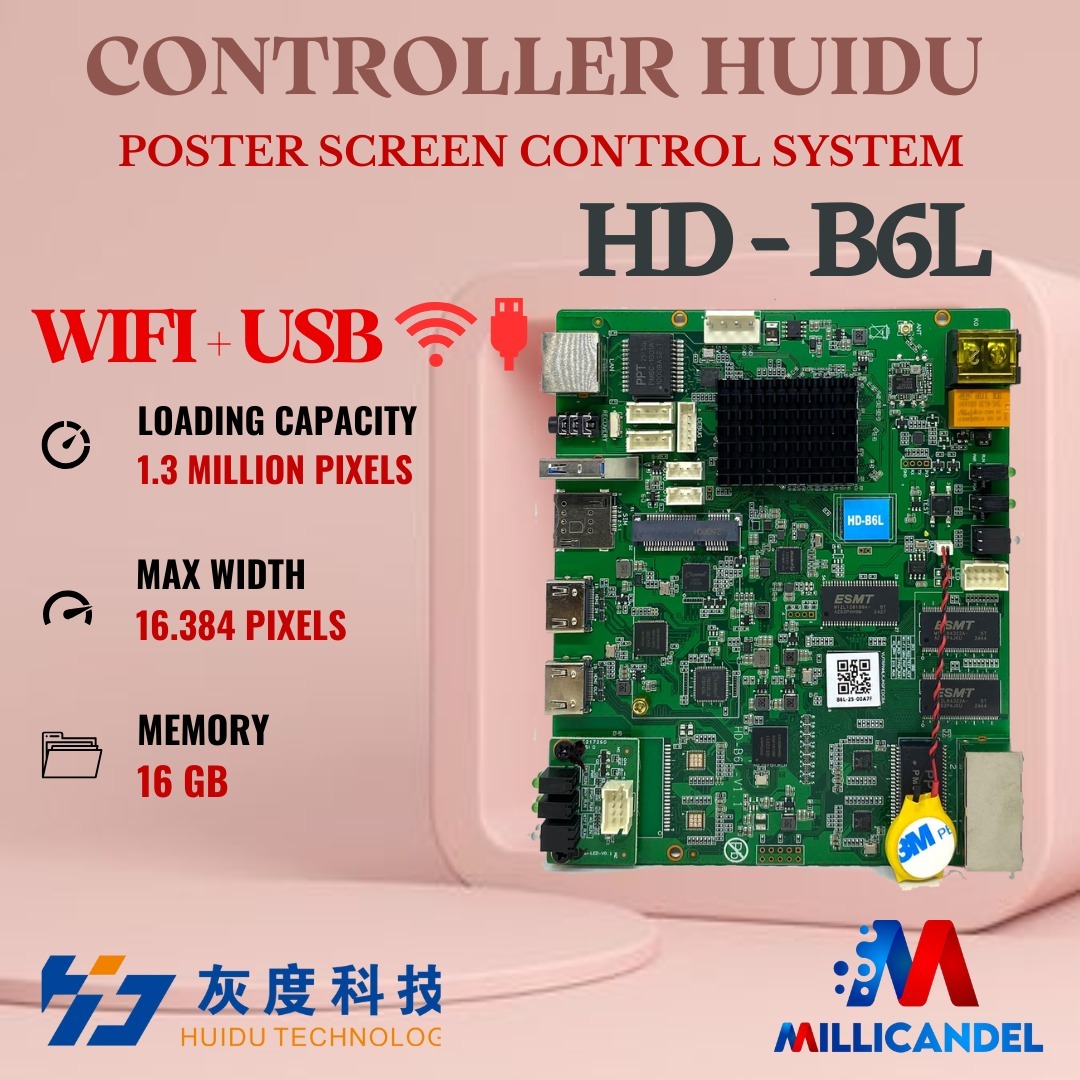

Features HD B6L
Input：
1. Support 1 Gigabit input network port for debugging parameters, sending programs and accessing the Internet;
2. Support 1 HDMI input interface, support automatic zooming of synchronous images, and support synchronous
and asynchronous picture-in-picture functions;
3. Support 1 USB communication interface for updating programs and expanding capacity;
4. Support 2 dedicated sensor interfaces for external environmental monitoring sensors or GPS, etc.
Output：
1. Standard 2 Gigabit output network ports, Cascade with receiving card to realize display screen loading.
2. The maximum control range of Single B6L is 130W pixels, supports a maximum width of 16,384 pixels or a
maximum high of 8,192 pixels, and the cascade splicing can reach 260W pixels(for Multiple B6L);
3. 1 TRS 3.5mm and 1 4PIN standard two-channel audio output;
4. 1 HDMI signal output for cascade splicing, supporting up to 10 levels.
Function：
1. Standard 2.4GHz Wi-Fi, supports mobile phone APP wireless control (supports Wi-Fi AP, Wi-Fi STA mode);
2. Onboard 1 relay for remote power control;
3. Support multi-channel video window playback (support up to 2 channels of 4K or 6 channels of 1080P or 10
channels of 720P or 20 channels of 360P);
4. Support 4G access to XiaoHui Cloud Platform to achieve Internet remote cluster management (optional);
5. The cascade state supports the basic parameters, connection relationship and brightness parameters of the
secondary screen synchronization receiving card of the main screen;
6. Support synchronous playback, asynchronous playback and synchronous and asynchronous mixed playback.
