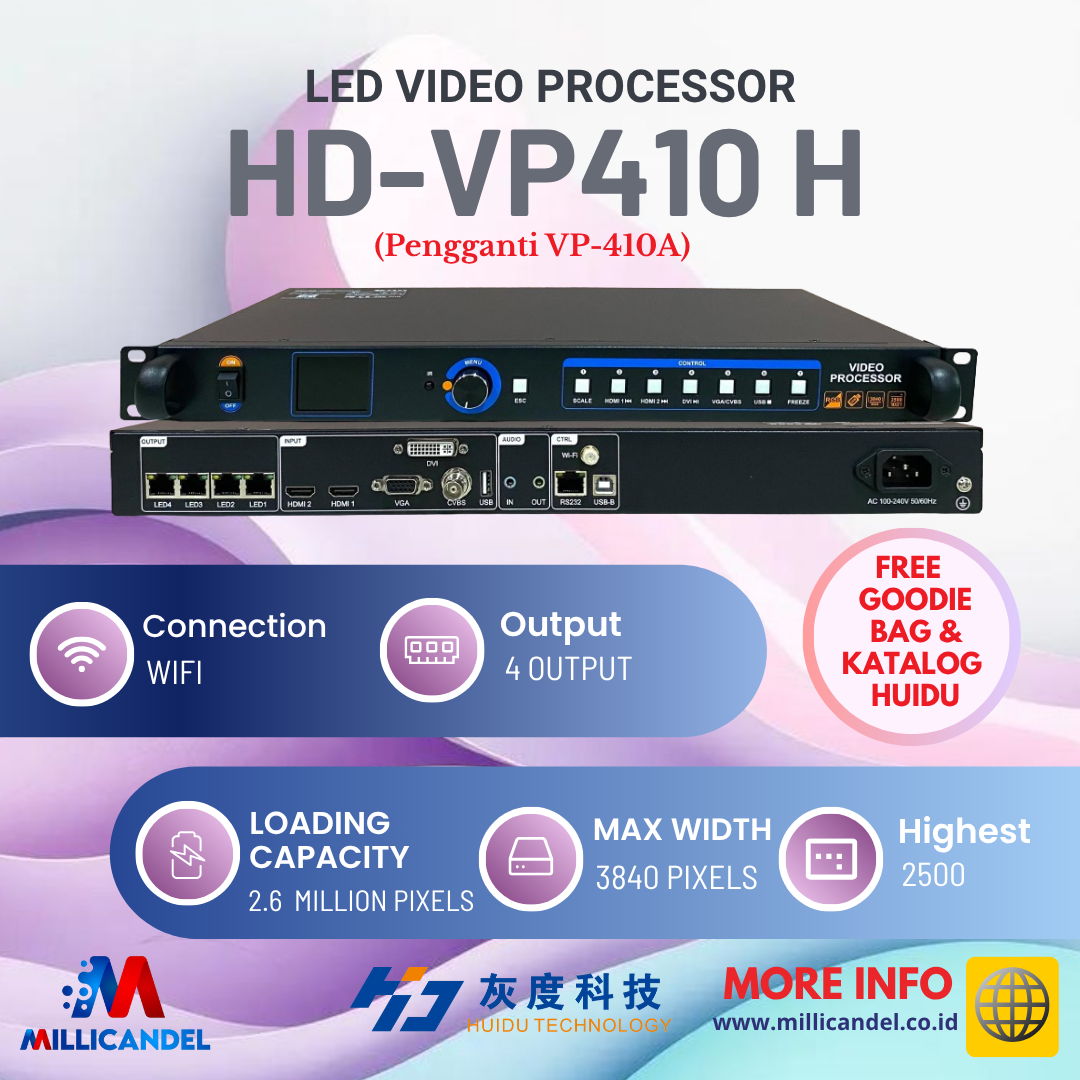

HD VP410 H
Input
 Supports 2 channels of HDMI, 1 channel of DVI, 1 channel of VGA, and 1 channel of CVBS signal input,
which can be switched at will;
 1USBinputsupports direct playback of videos and pictures in various mainstream formats in the root
directory of the USB flash drive, and supports up to 1080P high-definition video playback;
 Supports 1 channel TRS 3.5mm standard two-channel audio input and HDMI audio input.
Output
 Standard configuration is 4-way Gigabit network ports, which can be directly cascaded to the receiving card;
 Themaximumcontrol is 2.6 million pixels, with a maximum horizontal support of 3840 pixels and a maximum
vertical support of 2500 pixels;
 1channelTRS3.5mmstandard two-channel audio output.
Features
 SupportUdisk playback, plug and play;
 Support limited conversion and full output;
 Pixel-to-pixel display effect;
 Supportnon-rectangular load;
 Support16 scene presets and calls;
 Videosignal can be switched, cropped, and scaled at will;
 Supportbrightness and color temperature adjustment;
 SupportRS232 serial port protocol control, docking central control equipment;
 SupportWi-Fi Station mode,AP mode, Wi-Fi station+AP mode;
 Supportmobile phoneAPP wireless control;
 Support infrared remote control (optional);
 Support4G module (optional);
 Supports SDI signal loop output (optional).
