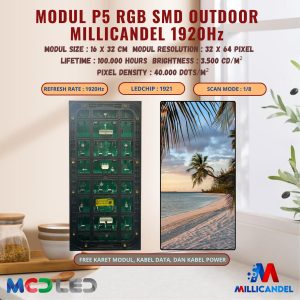

Module size : 320mm*160mm
Pixel pitch : 5mm
Pixels Density : 40000 dots/m2
LED lamp : P5 RGB SMD 1921
Pixel resolution : 64dots(W)*32dots(H)
Module thickness（mm) : 17
Weight (g）: 400
Drive IC : FM6124
Decoding mode : 7258
Drive type : Constant current
Scan mode : 1/8 scan
Port type : HUB75
Brightness : ≥3500 cd/m2
Power supply : 5V/40A*4pcs
Best viewing distance : 5m-15m
Best viewing distance : 120°(W) 120°(H)
Temperature :
storage:35°C～+85°C working:-10°C~+45°C
Relative humidity : 15%-85%
Working voltage : AC110/ 220V+10%;50HZ
Average Power consumption : ≤300 W/m2
Max.Power consumption : ≤600 W/m2
Power consumption : 28W
Operation system : WIN7/WIN8
Control method : Synchronization/Asynchronization
Driving device : Constant drive IC
Refresh frequency : ≥1920HZ/SEC
Frame frequency : ≥60HZ/SEC
MTBF : ≥10000hours
Life Span : ≥100000hours
Power switch : Automatic switch
IP Grade : IP65
