Low profile,thinner and less weight
High reliability,strong load capability
Protections:Overload/Short circuit
100% pass full load high temp aging test

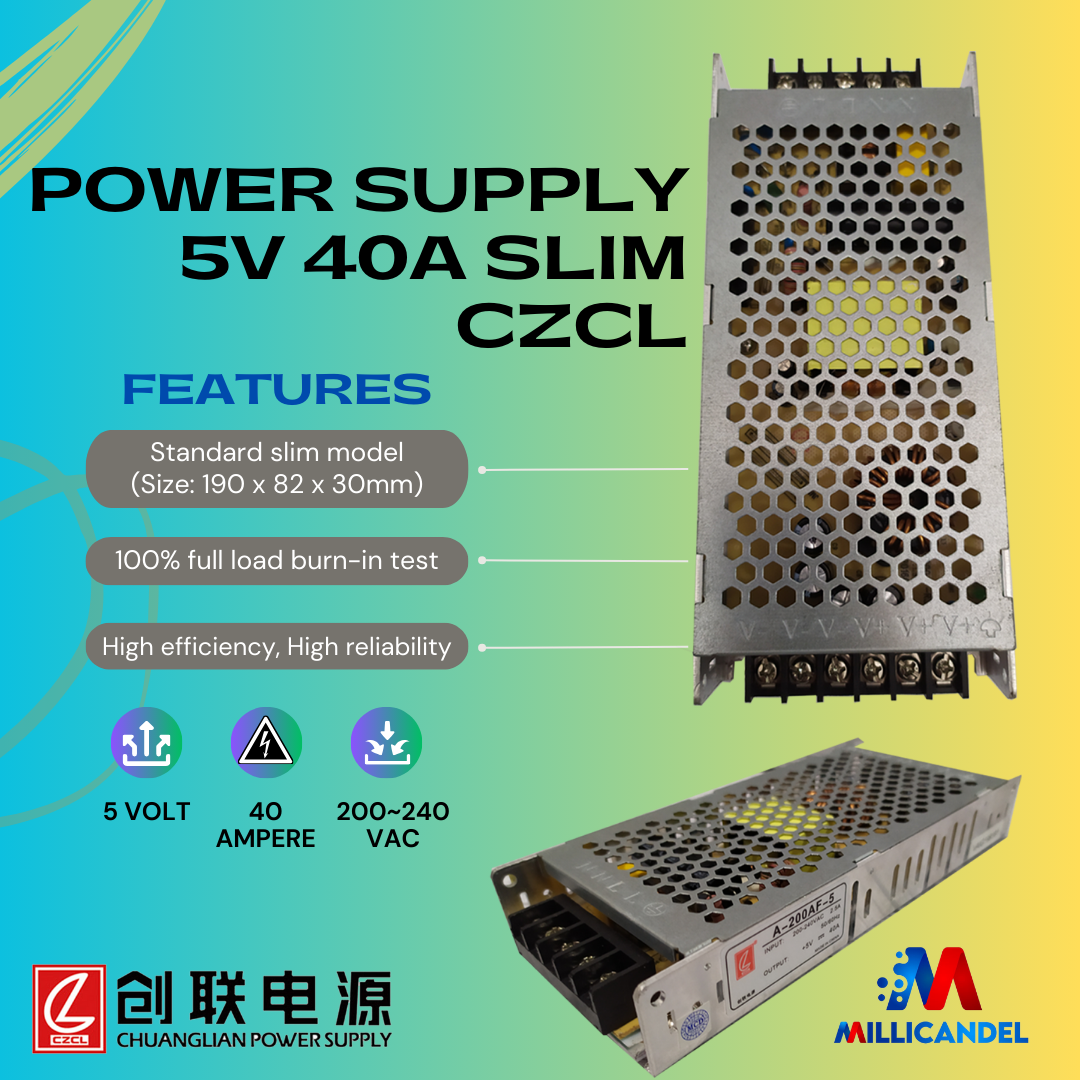

Size: 190×82×30mm
AC Input Voltage Range/Input Frequency : 200~240VAC/47~63Hz
AC Inrush Current : cold start””’60A/230VAC
Line Regulation(full load) & plusmn;1%
Output Overload Protection : 110%-150%Hiccup mode,auto-recover
Rise,Hold up time : 50mS, 20mS(at full load)
Withstand Voltage : I/P-O/P:3KVAC,I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min
Working temperature : -30′”~+60′”(refer to temperature derating curve)
Storage Temperature : -40′”~+100′”””’20~95%RH(non-condensing)
Safety Standards : GB4943, UL60950-1, EN60950-1
EMC Standards : GB9254, EN55022 class A
Cooling Method : Free air cooling convection
