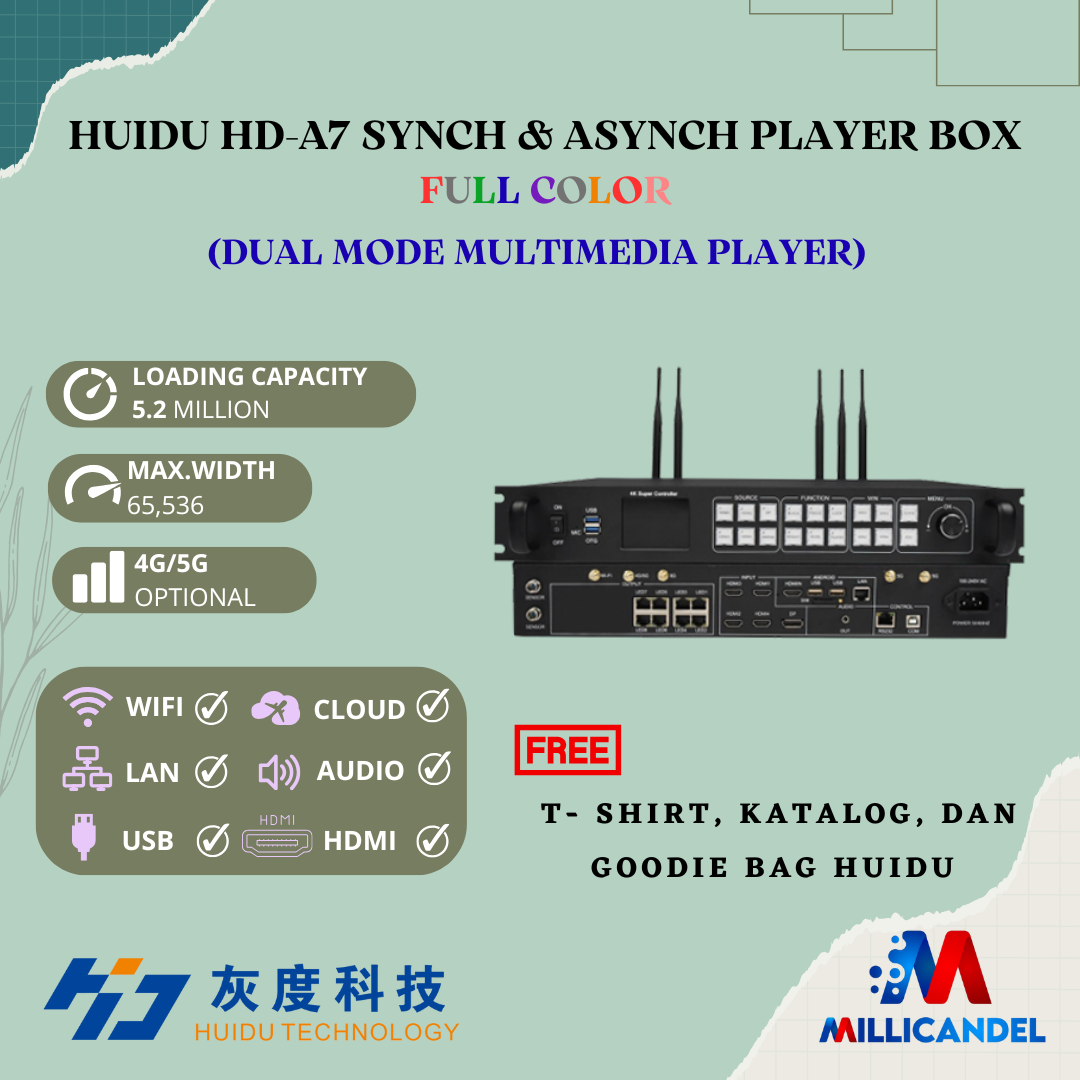

Features
Input:
1. Support 1 channel Gigabit communication network port, used for debugging parameters, send programs;
2. Support 1 channel HDMI IN interface, support synchronous picture auto-scaling, support the same
asynchronous picture-in-picture function;
3. Support 4 channel HDM input interface and 1 channel DP input interface, synchronous playback;
4. Support 3 channel USB HOST interface, used for using U disk to update/plug programs or expand capacity,
1 channel USB OTG interface;
5. Support 2-way sensor input interface, external various environmental detection sensors.

Output:
1. 8-channel Gigabit output network port on board, cascade receiver card to control LED display;
2. Asynchronous mode has a maximum loading capacity of 5.16 million pixels and a maximum width of 65,536
pixels; synchronous mode has a maximum loading capacity of 5.2 million pixels and a maximum width of
16,000 pixels;
3. 1-channel TRS 3.5mm standard dual-channel audio output.

Functions:
1. Standard 2.4GHz and 5GHz dual-frequency Wi-Fi, support for cell phone wireless control (support STA
mode, in which the device can be connected to a nearby Wi-Fi network);
2. Support for hard decoding of high-definition video, support for multi-channel video window playback (support
for 1-channel 4K video or 4-channel 1080P video playback);
3. Support synchronous mode, asynchronous mode switching playback. Support synchronous mode,
asynchronous mode switching playback, support synchronous mode, asynchronous mode mixed playback;
4. Support voice control;
5. Support optional 4G/5G access to the small gray cloud platform to achieve remote cluster management over
the Internet;
6. Support optional mobile phone, tablet PC wireless casting.

Sizes : 432mm×270mm×64.2mm
